一、决策树是什么？—— 通俗易懂的核心概念?

决策树（Decision Tree）是机器学习中监督学习算法的重要代表，因其逻辑类似于人类的决策过程而得名。想象你判断 “是否出门野餐”：首先看 “是否有雨”，再考虑 “温度是否适宜”，最后查看 “有无同伴”—— 这种逐步判断的逻辑链，就是决策树的核心思想。

在机器学习中，决策树的结构包含三个关键部分：

• 根节点：决策的起点（如 “是否有雨”），对应数据集中的特征
• 内部节点：中间判断条件（如 “温度是否适宜”）
• 叶节点：最终决策结果（如 “出门野餐” 或 “不出门”）

分支：每个判断的可能结果（是 / 否、数值区间等）

决策树的优势在于可解释性极强（能清晰看到决策过程）、无需特征标准化、对异常值不敏感，缺点是容易过拟合（后续会讲优化方法）。

二、决策树如何 “做决策”？—— 核心算法原理?

决策树的关键在于如何选择最优特征作为节点，本质是通过 “纯度提升” 实现分类 / 回归。常用的特征选择指标有 3 种：

1. 信息增益（ID3 算法）
2. 基于 “信息熵”（衡量数据混乱程度），信息增益 = 父节点熵 - 子节点加权熵。信息增益越大，说明该特征分类效果越好。
3. 信息熵公式（二分类问题）：

是类别 k 在数据集 D 中的占比。

2. 信息增益比（C4.5 算法）
3. 解决 ID3 算法偏好取值多的特征（如 “用户 ID”）的问题，引入 “特征固有值” 进行标准化：
4. 信息增益比 = 信息增益 / 特征固有值

3. 基尼系数（CART 算法）
4. 衡量数据集的不纯度，基尼系数越小，数据纯度越高：

CART 树是二叉树（每个节点仅分两个分支），可同时用于分类和回归（回归时用平方误差最小化）。

三、决策树的优缺点分析

优点：

• 无需数据预处理：对数据标准化要求较低
• 处理混合数据类型：能同时处理数值型和类别型特征
• 非参数方法：不对数据分布做假设

缺点：

• 过拟合风险：随着层数增加，容易过度拟合训练数据
• 不稳定性：数据微小变化可能导致完全不同的树结构
• 偏向于多值属性：信息增益倾向于选择有更多取值的属性

四、决策树的构建与终止条件

构建过程：

1. 选择最佳划分属性
2. 根据属性值划分数据集
3. 对每个子集递归执行上述过程

终止条件：

• 当前节点所有样本属于同一类别
• 没有剩余属性可用于进一步划分
• 当前节点样本集为空
• 达到预设的树深度或节点最小样本数

五、属性划分方法

1. 信息增益（ID3 算法）
2. 选择使信息增益最大的属性进行划分
3. 信息增益 = 父节点熵 - 加权子节点熵之和
4. 倾向于选择多值属性，可能导致过拟合

2. 增益率（C4.5 算法）
3. 对信息增益进行规范化，克服多值属性偏好
4. 增益率 = 信息增益 / 分裂信息

3. 基尼指数（CART 算法）
4. 衡量数据不纯度，选择使基尼指数下降最快的属性
5. 基尼指数越小，数据纯度越高

六、剪枝策略：防止过拟合

1. 预剪枝（Pre-pruning）

原理：在树构建过程中提前停止生长

方法：

• 设置最大深度
• 设置节点最小样本数
• 通过验证集评估是否继续划分

优点：

• 降低过拟合风险
• 减少训练和测试时间

缺点：

• 可能欠拟合
• 难以确定最优停止条件

2. 后剪枝（Post-pruning）

原理：先构建完整树，再自底向上剪枝

方法：

• 用验证集评估子树替换为叶节点的影响
• 若精度不下降则剪枝

优点：

• 保留更多分支可能，欠拟合风险低
• 泛化能力通常优于预剪枝

缺点：

• 计算成本较高
• 过拟合风险仍存在

七、决策树学习的目标

决策树学习的核心目标是获得泛化能力强的模型，即在未见数据上表现良好的决策树。为实现这一目标，需要：

• 选择合适的划分准则
• 设置合理的停止条件
• 应用适当的剪枝策略
• 可能使用集成方法（如随机森林）进一步提升性能

八、实战演练

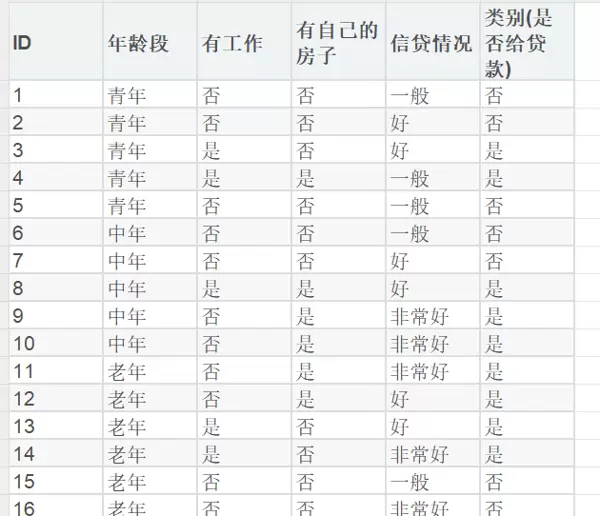

这是一个关于是否可以成功申请信贷的表格，接下来同学们，请根据表格内容编写代码

1. 构建树：

def _build_tree(self, X, y, depth=0):
        n_samples, n_features = X.shape
        n_classes = len(np.unique(y))

        # 终止条件
        if (self.max_depth is not None and depth >= self.max_depth) or \
                n_classes == 1 or \
                n_samples < self.min_samples_split:
            leaf_value = self._compute_leaf_value(y)
            return TreeNode(value=leaf_value)

        best_feature, best_threshold = self._find_best_split(X, y, n_features)

        if best_feature is None:
            return TreeNode(value=self._compute_leaf_value(y))

        left_idxs = X[:, best_feature] <= best_threshold
        right_idxs = ~left_idxs
        left = self._build_tree(X[left_idxs], y[left_idxs], depth + 1)
        right = self._build_tree(X[right_idxs], y[right_idxs], depth + 1)

        return TreeNode(feature_idx=best_feature, threshold=best_threshold, left=left, right=right)

2. 计算熵

def _entropy(self, y):
    counts = np.bincount(y)
    ps = counts / len(y)
    return -np.sum([p * np.log2(p) for p in ps if p > 0])

3. 寻找最佳划分

def _find_best_split(self, X, y, n_features):
    best_gain = -1
    best_feature = None
    best_threshold = None

    for feature_idx in range(n_features):
        thresholds = np.unique(X[:, feature_idx])
        for threshold in thresholds:
            gain = self._information_gain(X, y, feature_idx, threshold)
            if gain > best_gain:
                best_gain = gain
                best_feature = feature_idx
                best_threshold = threshold

    return best_feature, best_threshold

4. 信息增益

公式：Gain(D,A)=H(D) - Σ(∣Dv∣/∣D∣ * H(Dv))

def _information_gain(self, X, y, feature_idx, threshold):
    parent_entropy = self._entropy(y)

    left_idxs = X[:, feature_idx] <= threshold
    right_idxs = ~left_idxs

    if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
        return 0

    n = len(y)
    n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
    e_left = self._entropy(y[left_idxs])
    e_right = self._entropy(y[right_idxs])

    child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
    information_gain = parent_entropy - child_entropy
    return information_gain

5. C4.5 增益率

公式：增益率 = 信息增益 / 划分信息

def _split_info(self, X, feature_idx, threshold):
    left_idxs = X[:, feature_idx] <= threshold
    right_idxs = ~left_idxs

    n = len(X)
    n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)

    if n_left == 0 or n_right == 0:
        return 0

    p_left = n_left / n
    p_right = n_right / n

    return -p_left * np.log2(p_left) - p_right * np.log2(p_right)

def _information_gain_ratio(self, X, y, feature_idx, threshold):
    information_gain = self._information_gain(X, y, feature_idx, threshold)
    split_information = self._split_info(X, feature_idx, threshold)

    if split_information == 0:
        return 0

    return information_gain / split_information

6. 结果

import numpy as np
from collections import Counter


def load_data(file_path):
    data = []
    with open(file_path, 'r') as f:
        for line in f:
            items = line.strip().split(',')
            items = [int(item) for item in items]
            data.append(items)
    return np.array(data)


class TreeNode:
    def __init__(self, feature_idx=None, threshold=None, value=None, left=None, right=None):
        self.feature_idx = feature_idx
        self.threshold = threshold
        self.value = value
        self.left = left
        self.right = right

    def is_leaf(self):
        return self.value is not None


class DecisionTree:
    def __init__(self, max_depth=None, min_samples_split=2):
        self.max_depth = max_depth
        self.min_samples_split = min_samples_split
        self.root = None

    def fit(self, X, y):
        self.root = self._build_tree(X, y)

    def predict(self, X):
        return np.array([self._traverse_tree(x, self.root) for x in X])

    def _traverse_tree(self, x, node):
        if node.is_leaf():
            return node.value
        if x[node.feature_idx] <= node.threshold:
            return self._traverse_tree(x, node.left)
        else:
            return self._traverse_tree(x, node.right)

    def _build_tree(self, X, y, depth=0):
        n_samples, n_features = X.shape
        n_classes = len(np.unique(y))

        # 终止条件
        if (self.max_depth is not None and depth >= self.max_depth) or \
                n_classes == 1 or \
                n_samples < self.min_samples_split:
            leaf_value = self._compute_leaf_value(y)
            return TreeNode(value=leaf_value)

        best_feature, best_threshold = self._find_best_split(X, y, n_features)

        if best_feature is None:
            return TreeNode(value=self._compute_leaf_value(y))

        left_idxs = X[:, best_feature] <= best_threshold
        right_idxs = ~left_idxs
        left = self._build_tree(X[left_idxs], y[left_idxs], depth + 1)
        right = self._build_tree(X[right_idxs], y[right_idxs], depth + 1)

        return TreeNode(feature_idx=best_feature, threshold=best_threshold, left=left, right=right)

    def _find_best_split(self, X, y, n_features):
        pass

    def _compute_leaf_value(self, y):
        pass


class ID3DecisionTree(DecisionTree):
    def __init__(self, max_depth=None, min_samples_split=2):
        super().__init__(max_depth, min_samples_split)

    def _entropy(self, y):
        counts = np.bincount(y)
        ps = counts / len(y)
        return -np.sum([p * np.log2(p) for p in ps if p > 0])

    def _information_gain(self, X, y, feature_idx, threshold):
        parent_entropy = self._entropy(y)

        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
            return 0

        n = len(y)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
        e_left = self._entropy(y[left_idxs])
        e_right = self._entropy(y[right_idxs])

        child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
        information_gain = parent_entropy - child_entropy
        return information_gain

    def _find_best_split(self, X, y, n_features):
        best_gain = -1
        best_feature = None
        best_threshold = None

        for feature_idx in range(n_features):
            thresholds = np.unique(X[:, feature_idx])
            for threshold in thresholds:
                gain = self._information_gain(X, y, feature_idx, threshold)
                if gain > best_gain:
                    best_gain = gain
                    best_feature = feature_idx
                    best_threshold = threshold

        return best_feature, best_threshold

    def _compute_leaf_value(self, y):
        return Counter(y).most_common(1)[0][0]


class C45DecisionTree(DecisionTree):
    def __init__(self, max_depth=None, min_samples_split=2):
        super().__init__(max_depth, min_samples_split)

    def _entropy(self, y):
        counts = np.bincount(y)
        ps = counts / len(y)
        return -np.sum([p * np.log2(p) for p in ps if p > 0])

    def _split_info(self, X, feature_idx, threshold):
        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        n = len(X)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)

        if n_left == 0 or n_right == 0:
            return 0

        p_left = n_left / n
        p_right = n_right / n

        return -p_left * np.log2(p_left) - p_right * np.log2(p_right)

    def _information_gain_ratio(self, X, y, feature_idx, threshold):
        parent_entropy = self._entropy(y)

        left_idxs = X[:, feature_idx] <= threshold
        right_idxs = ~left_idxs

        if np.sum(left_idxs) == 0 or np.sum(right_idxs) == 0:
            return 0

        n = len(y)
        n_left, n_right = np.sum(left_idxs), np.sum(right_idxs)
        e_left = self._entropy(y[left_idxs])
        e_right = self._entropy(y[right_idxs])

        child_entropy = (n_left / n) * e_left + (n_right / n) * e_right
        information_gain = parent_entropy - child_entropy

        split_information = self._split_info(X, feature_idx, threshold)

        if split_information == 0:
            return 0

        gain_ratio = information_gain / split_information
        return gain_ratio

    def _find_best_split(self, X, y, n_features):
        best_gain_ratio = -1
        best_feature = None
        best_threshold = None

        for feature_idx in range(n_features):
            thresholds = np.unique(X[:, feature_idx])
            for threshold in thresholds:
                gain_ratio = self._information_gain_ratio(X, y, feature_idx, threshold)
                if gain_ratio > best_gain_ratio:
                    best_gain_ratio = gain_ratio
                    best_feature = feature_idx
                    best_threshold = threshold

        return best_feature, best_threshold

    def _compute_leaf_value(self, y):
        return Counter(y).most_common(1)[0][0]


def evaluate_model(model, X_train, y_train, X_test, y_test):
    model.fit(X_train, y_train)

    test_pred = model.predict(X_test)

    test_acc = np.sum(test_pred == y_test) / len(y_test)

    print(f"测试集准确率: {test_acc:.4f}")

    return test_acc


def main():
    train_path = "C:/Users/Administrator/Downloads/dataset.txt"
    test_path = "C:/Users/Administrator/Downloads/testset.txt"

    train_data = load_data(train_path)
    test_data = load_data(test_path)

    # 分割特征和标签
    X_train = train_data[:, :-1]
    y_train = train_data[:, -1]
    X_test = test_data[:, :-1]
    y_test = test_data[:, -1]

    print("\n使用ID3决策树(信息增益):")
    id3_tree = ID3DecisionTree(max_depth=5)
    id3_test_acc = evaluate_model(id3_tree, X_train, y_train, X_test, y_test)

    print("\n使用C4.5决策树(信息增益率):")
    c45_tree = C45DecisionTree(max_depth=5)
    c45_test_acc = evaluate_model(c45_tree, X_train, y_train, X_test, y_test)


if __name__ == "__main__":
    main()
