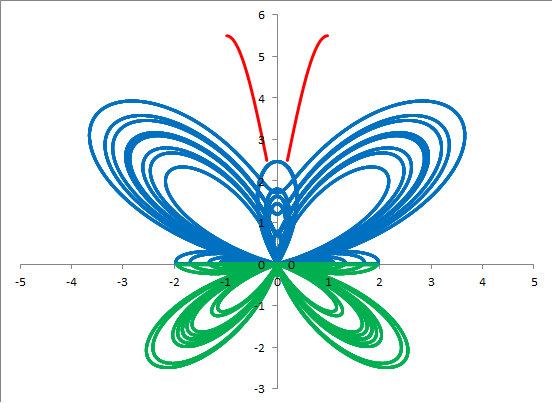

感谢连老师的程序，偶尔拿来看看，很是好看！改程序复制后在stata 12中do文件中，然后可以运行出来，不过下面有个牛人用excel做出更好看的图形，令人佩服！

*--------------------------------- Stata 花蝴蝶-------------------------------
*-蝴蝶身体部分
  clear
  local b0 = -400
  local b1 = 4
  local d  = 0.01
  local N = int((`b1'-`b0')/`d')
  set obs `N'
  gen t = -400 + _n*`d'
  gen a = cos(t)
  gen b = cos(4*t)
  gen x = sin(t)*(exp(a)-2*b-(sin(t/12)*sin(t/12)*sin(t/12)*sin(t/12)*sin(t/12)))
  gen y = cos(t)*(exp(a)-2*b-(sin(t/12)*sin(t/12)*sin(t/12)*sin(t/12)*sin(t/12)))

*-胡须
  dropvars x2 y2 x3
  gen y2 =.
  gen x2 =.
  local j = 1
  local end = (_pi/4+0.20)
  forvalues i = 0.20(0.01)`end'{
    qui replace x2 = `i' in `j++'
  }
  replace y2 = 3*sin(2*(x2-0.20))+2.5
  gen x3 = -x2  //左半只

*-绘图
  twoway (line y x if y>0, lc(pink*0.55) lw(*2.5))    ///
         (line y x if y<0, lc(pink*0.70) lw(*2.5))    ///
         (line y2 x2     , lc(yellow*1.2) lw(*3.5))   ///
         (line y2 x3     , lc(yellow*1.2) lw(*3.5)),  ///
         yscale(off) xscale(off) legend(off)
*-----------------------------------------------------------------------------
